Whole Slide Imaging & Slide Scanning Services
iHisto provides high-resolution whole slide imaging and digital slide scanning services for biotech, pharmaceutical, CRO, and academic research. We scan H&E, IHC, special stains, immunofluorescence (IF), FISH, and multiplex fluorescence slides using brightfield and fluorescence whole slide scanners.

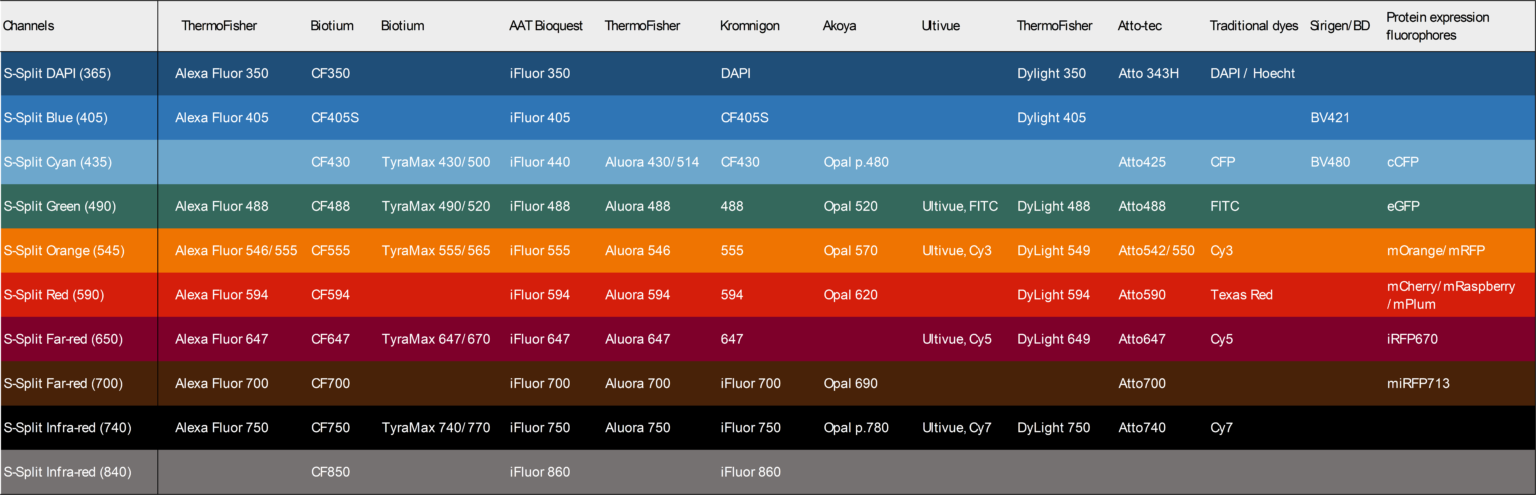

Our fluorescence imaging capabilities include up to 10-color multiplex whole slide imaging using the Evident SLIDEVIEW™ VS200 with SpectraSplit® 10, high-resolution Z-stack imaging, and flexible digital image formats for downstream analysis.
Explore a Digital Whole Slide Image Viewer
Zoom, pan, and explore a high-resolution H&E whole slide image using our interactive digital slide viewer.
Whole Slide Imaging Services for Research
iHisto provides brightfield and fluorescence whole slide imaging services for non-clinical research. We support H&E, IHC, IF, FISH, multiplex fluorescence, and routine histology workflows with high-resolution digital slide scanning and compatible output formats for downstream review and analysis.
Platform: 3DHISTECH PANNORAMIC 1000
Brightfield Histology Slide Scanning
High-Resolution H&E, IHC & Special Stain Imaging
High-resolution brightfield whole slide imaging for routine histology, pathology review, digital archiving, and quantitative image analysis. Our 3DHISTECH PANNORAMIC 1000 platform also supports large-format slide scanning up to 2" × 3".
-
H&E, IHC, and special stain slide scanning
-
Standard 1" × 3" slides
-
Large-format slide scanning up to 2" × 3"
-
High-throughput slide digitization
-
Multiple digital output formats
-
Compatible with downstream image analysis
Regular Size (1" × 3")
-
Basic: $13/slide — 20X objective, 41X capture magnification, 0.242 µm/pixel
-
Advanced: $38/slide — 40X objective, 82X capture magnification, 0.121 µm/pixel
Large Size (2" × 3")
-
Basic: $25/slide — 20X objective, 41X capture magnification, 0.242 µm/pixel
-
Advanced: $76/slide — 40X objective, 82X capture magnification, 0.121 µm/pixel
Output formats: MRXS, SVS (Aperio compatible), TIFF
Recommended Image Viewer: iViewer
Secure Cloud Access for Digital Slides
Whole slide images can be uploaded to iHisto’s secure server and accessed through private login credentials for convenient remote viewing, sharing, and collaboration.
Whole Slide Imaging Service Workflow
1. Sample Submission
Ship your slides using our validated packaging guide or schedule a local pickup.
2. Intake QC
Each shipment is logged, barcoded, and visually inspected upon arrival to confirm sample integrity.
3. Whole Slide Imaging
Brightfield or fluorescence scanning is performed based on the requested slide type, resolution, and imaging requirements.
4. Quality Control
Post-scan review verifies image focus, color balance, completeness, and file integrity.
5. Secure Delivery
Digital slide files can be delivered through secure cloud access, encrypted hard drive, or direct server upload.
6. Optional Analysis Support
Add-on services may include AI quantification and research pathologist review.
Slide Types Supported for Whole Slide Imaging
-
Routine & Special Stains: H&E, IHC, and Special stains such as Masson’s Trichrome and PAS
-
Fluorescence Slides: Single-marker and multiplex IF/mIF panels, with available fluorescence channel options for up to 10 colors
-
Tissue Types: Frozen sections, FFPE tissue sections, and tissue microarrays (TMAs)
-
Slide Sizes: Standard (1" x 3") and Large-format (2" x 3") slides for whole-brain, whole-organ, and other large tissue sections
Whole Slide Imaging Applications
1. Biobank & Archive Digitization
Digitize histology slides for long-term storage, retrieval, and remote access.
2. Remote Slide Review
Secure access for distributed research teams, collaborators, and pathology review.
3. TMA Scanning
High-resolution whole slide imaging for tissue microarrays (TMAs).
4. Multiplex Fluorescence & Spatial Research
High-resolution imaging for multiplex IF/mIF panels, biomarker studies, and spatial research workflows.
5. Quantitative Image Analysis
Generate digital whole slide images for downstream image analysis, biomarker quantification, and research pathology workflows.
6. AI & Machine Learning Data Generation
High-quality whole slide image datasets for computational pathology and AI model development.
Why Choose iHisto for Whole Slide Imaging?
iHisto provides integrated whole slide imaging services for non-clinical research, from histology preparation and slide scanning to secure digital delivery, quantitative image analysis, and optional research pathologist review. Our brightfield and fluorescence imaging platforms support routine histology, large-format slides, multiplex IF/mIF, FISH, and up to 10-color fluorescence workflows.
-
Brightfield and fluorescence whole slide imaging
-
Up to 10-color multiplex fluorescence imaging
-
Standard and large-format slide scanning
-
H&E, IHC, IF, mIF, FISH, and special stains
-
Secure digital image access and flexible output formats
-
Optional quantitative image analysis and research pathologist review
Whole Slide Imaging for Biotech, CRO & Academic Research
iHisto supports biotech companies, CROs, pharmaceutical research teams, and academic laboratories with brightfield and fluorescence whole slide imaging services for non-clinical research, biomarker studies, digital pathology, and image analysis workflows.
Get Started with iHisto’s Whole Slide Imaging Service
Ready to Digitize Your Slides for Research?
Whether you need to scan a few slides or a large study set, iHisto provides flexible whole slide imaging options for research projects of different sizes and imaging requirements.
-
Try 5 Slides FREE – Evaluate our whole slide imaging quality with a small test set.
-
Request a Quote – Get project-specific pricing based on slide type, quantity, resolution, and imaging requirements.
-
Contact Us – Discuss your brightfield, fluorescence, multiplex, or large-format slide scanning needs with our team.
Frequently Asked Questions About Whole Slide Imaging
Q: What whole slide imaging services does iHisto offer?
A: iHisto provides brightfield and fluorescence whole slide imaging for H&E, IHC, special stains, IF, multiplex IF/mIF, FISH, tissue microarrays, and research slide digitization.
Q: Do you offer multiplex fluorescence whole slide imaging?

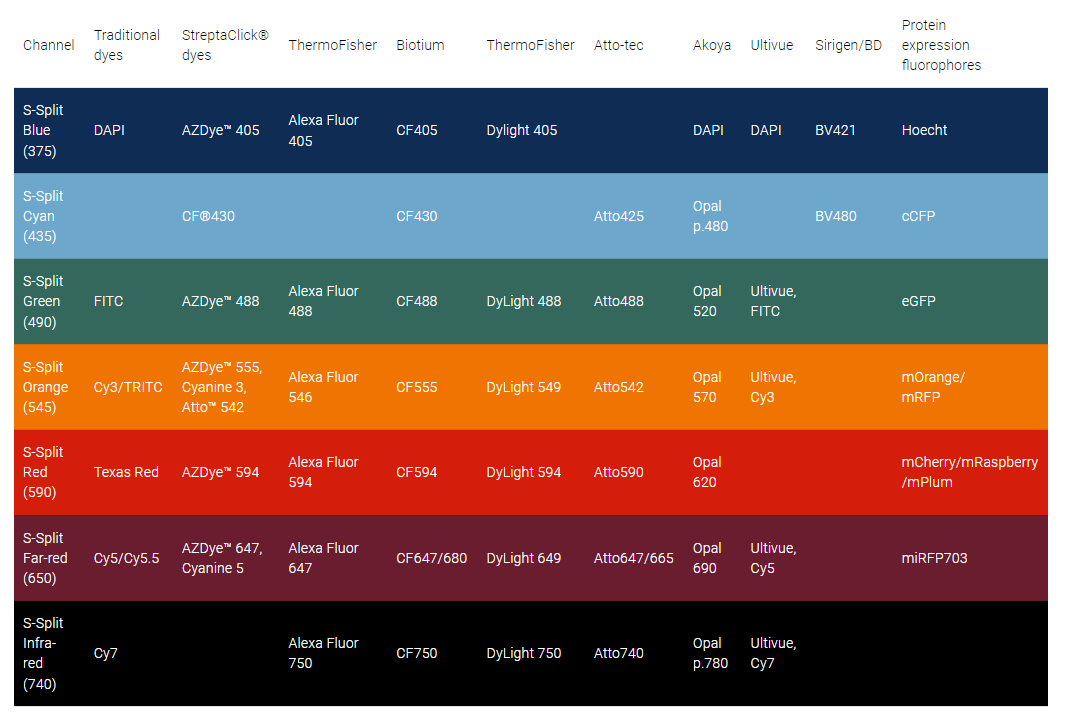

A: Yes. iHisto supports multiplex fluorescence whole slide imaging with up to 10 colors using the Evident SLIDEVIEW™ VS200 with SpectraSplit® 10. Up to 7-color imaging is also available using the 3DHISTECH PANNORAMIC MIDI with SpectraSplit® 7.
Q: Can you scan large-format slides?
A: Yes. Our 3DHISTECH PANNORAMIC 1000 supports standard 1" × 3" slides and large-format slides up to 2" × 3".
Q: What scanning resolutions are available?
A: Imaging options include 20X and 40X objectives, with pixel resolution depending on the scanner and imaging mode. Detailed resolution specifications are provided for each platform above.
Q: Do you offer bulk whole slide imaging services for large archives?
A: Yes. We support high-volume slide digitization for research archives, biobanks, and large study collections.
Q: How fast is iHisto’s whole slide imaging service?
A: Turnaround time depends on slide count, imaging mode, resolution, fluorescence channels, Z-stack requirements, file size, and delivery format. Expected turnaround is confirmed during quotation.
Q: Can I view and share my scanned slides online?
A: Yes. Digital slides can be made available through secure cloud-based access for remote viewing, sharing, and collaboration.
Q: What file formats do you provide?
A: Available formats depend on the scanning platform and project requirements. Common formats include MRXS, SVS, TIFF, VSI, and OME-TIFF.
Q: What image viewer software can I use?
A: Compatible viewers depend on the file format and platform and may include SlideViewer, HistoCloud, QuPath, and OlyVIA™.
Q: Who uses iHisto’s whole slide imaging services?
A: iHisto supports biotech companies, CROs, pharmaceutical research teams, academic laboratories, and other organizations conducting non-clinical research.
